When the error code is on the display, but not in the manual
Some washer service calls look pretty normal at first. The customer says the machine fills with water, then just stops. The drum does not really spin, the cycle does not continue, and an error shows up on the display. At that point, it could still be anything: a sensor, the motor, the main board, or something in between. But sometimes the appliance tells you right away that the case will not be standard. That is exactly what happened on this Samsung washer repair in Ridgefield, WA. This was not a new customer. Back in 2022, we had already repaired his dryer. Now it was the washer’s turn.
Customer complaint
According to the customer, the washing machine would fill with water and then just stop. The wash cycle would not start properly. An error code would appear on the display, but the customer could not really read it clearly. And that already matters. When a machine is showing an error, but the code on the display is hard to read clearly, the diagnosis gets more interesting. Formally, the code is there. In reality, it still does not give you a solid starting point. First, you have to see it yourself and confirm what the machine is actually showing. We scheduled the visit. During diagnosis, the washer did exactly what the customer described: it filled with water… and stopped. And then the display showed the code: 3E1. That was the point where the case immediately got more interesting.
Why this case was unusual
If you work on Samsung washers often, you generally know how they behave. There are common error codes, common test mode entries, and a more or less familiar diagnostic logic. But this one did not follow the usual script. First, the 3E1 code itself is not something you see all the time. Honestly, even for me it was not one of those codes you instantly read and remember. It looked unusual enough that I did not want to jump to conclusions. I had to check, search, and move toward the motor side or motor feedback side. And yes, Google can be a technician’s tool too. Second, this is where the call turned into real diagnosis instead of mechanical parts swapping. I tried to enter test mode using the standard Samsung button combinations, and the standard combinations did not work.
So the washer was doing three strange things at once: filling with water and stopping, showing an uncommon code, and refusing to enter standard Samsung test mode normally. At that point, it was already clear this would not be a template job.
When the paperwork does not help

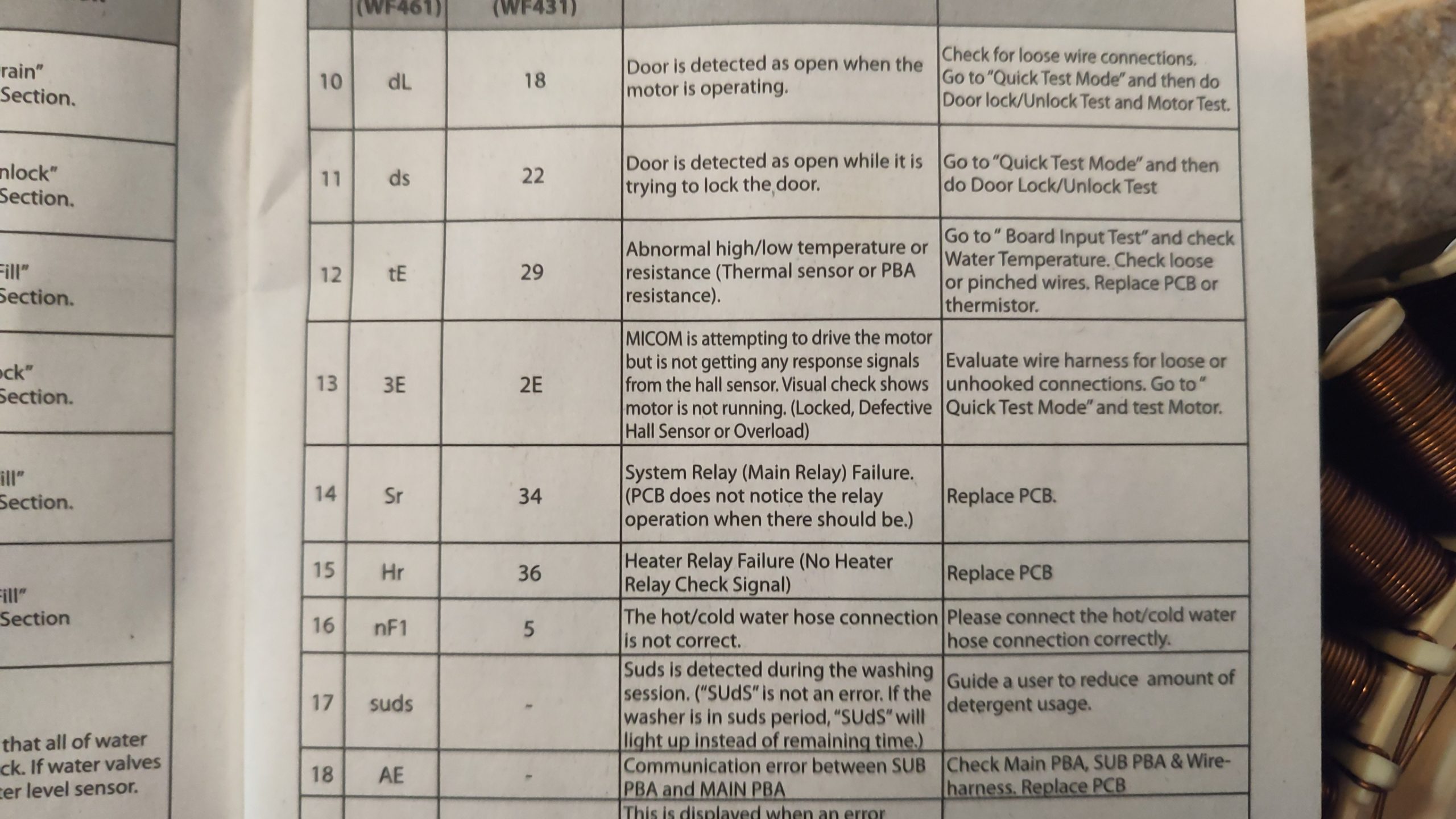

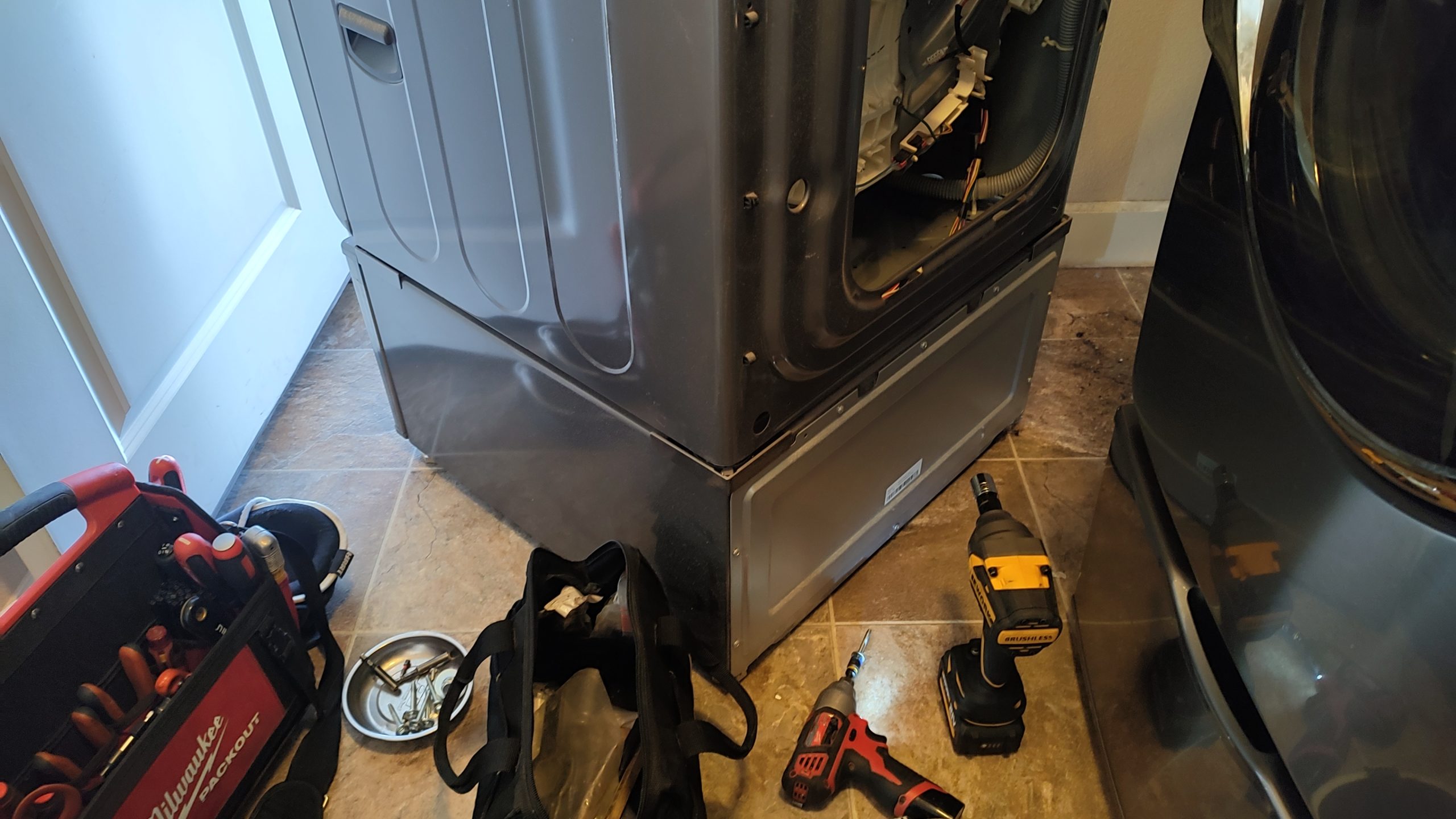

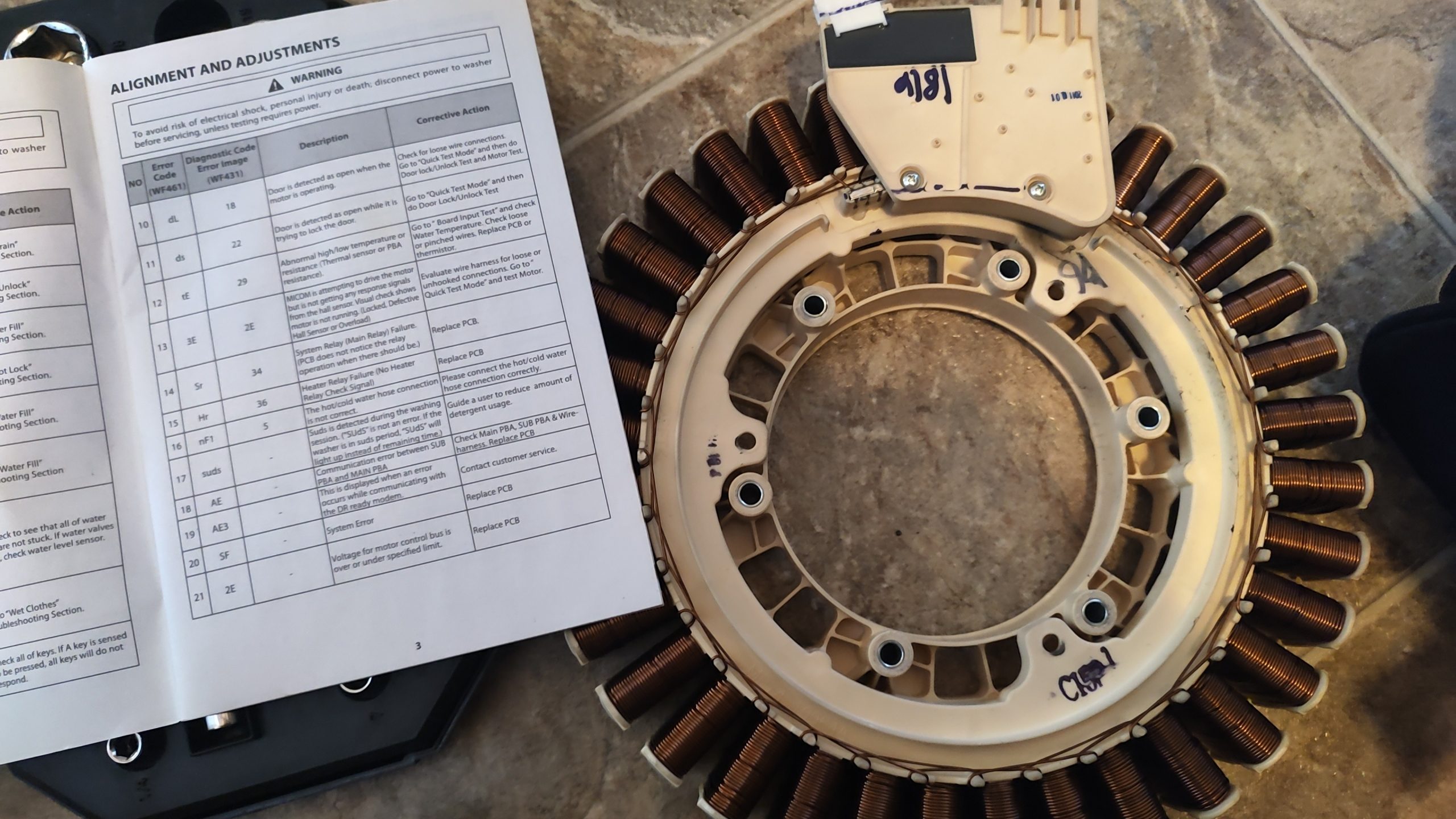

If the code looks strange and the machine’s behavior does not match the usual logic for that model, then there is only one thing left to do: follow the real technical path, not the pretty theory. We had a direction, and the decision was made: dig into the motor side and the feedback signal side. I pulled the washer out. And then one of those rare moments happened when there is actually a technical sheet inside the machine, and you almost think, “Alright, now this will get easier.” But no. I opened the service sheet and saw 3E2 in it, but 3E1 was not there at all.
So the situation was almost absurd: the code was on the display, the service sheet was inside the washer, but the actual code was not in it. So, Samsung, have you guys ever heard of logic? Apparently not. Okay. After cases like this, you remember a simple thing again: the manual is useful only as long as it actually helps. After that, you still have to follow the logic and inspect the machine itself.
Moving toward the motor
Since the error pointed toward the motor side, and the machine’s behavior supported that, the teardown continued toward the motor assembly. On this Samsung, that meant access to the stator and the Hall sensor, which provides motor speed and position feedback. And that is exactly where the real cause finally showed itself without any more guessing.
What we actually found

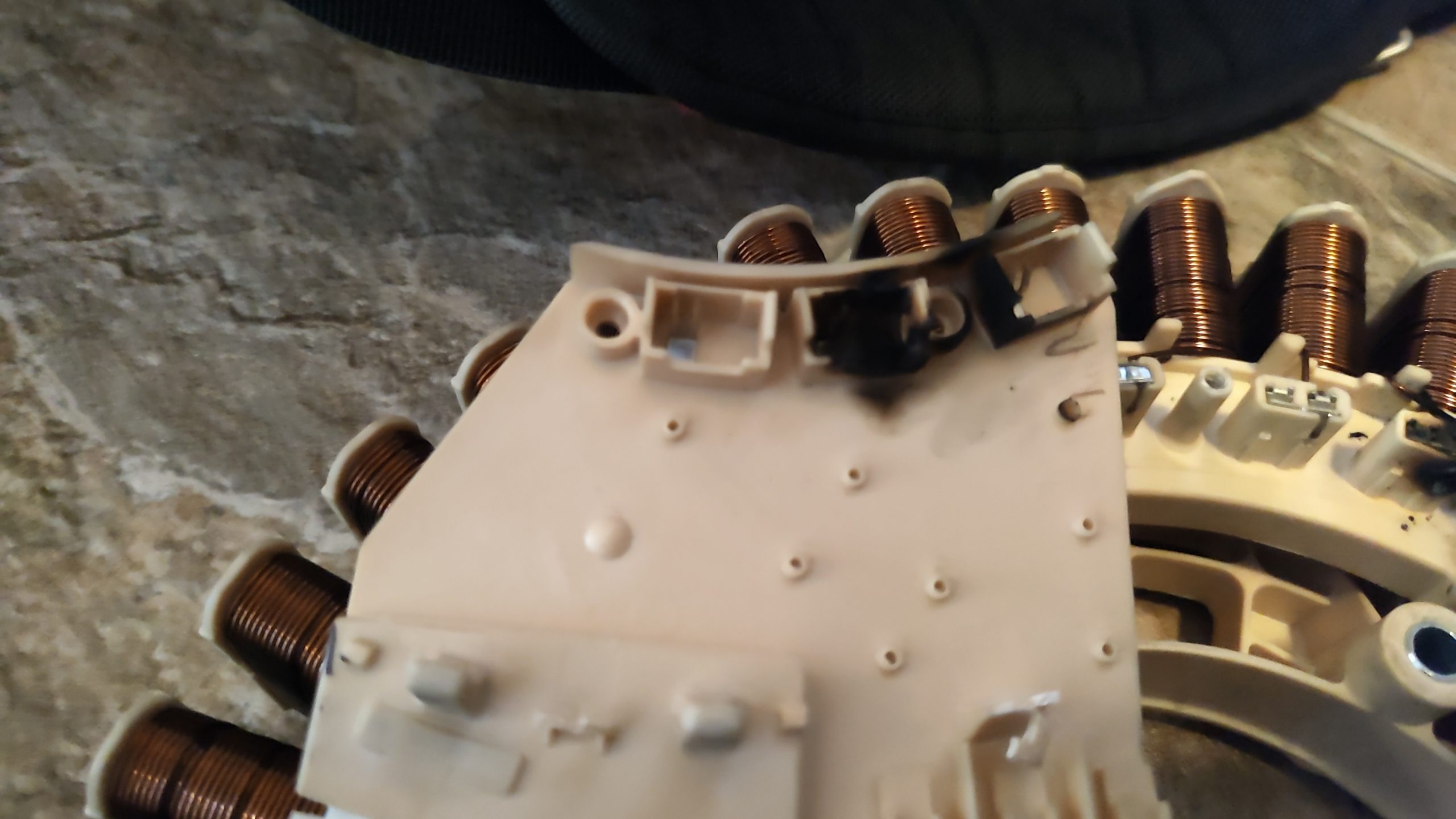

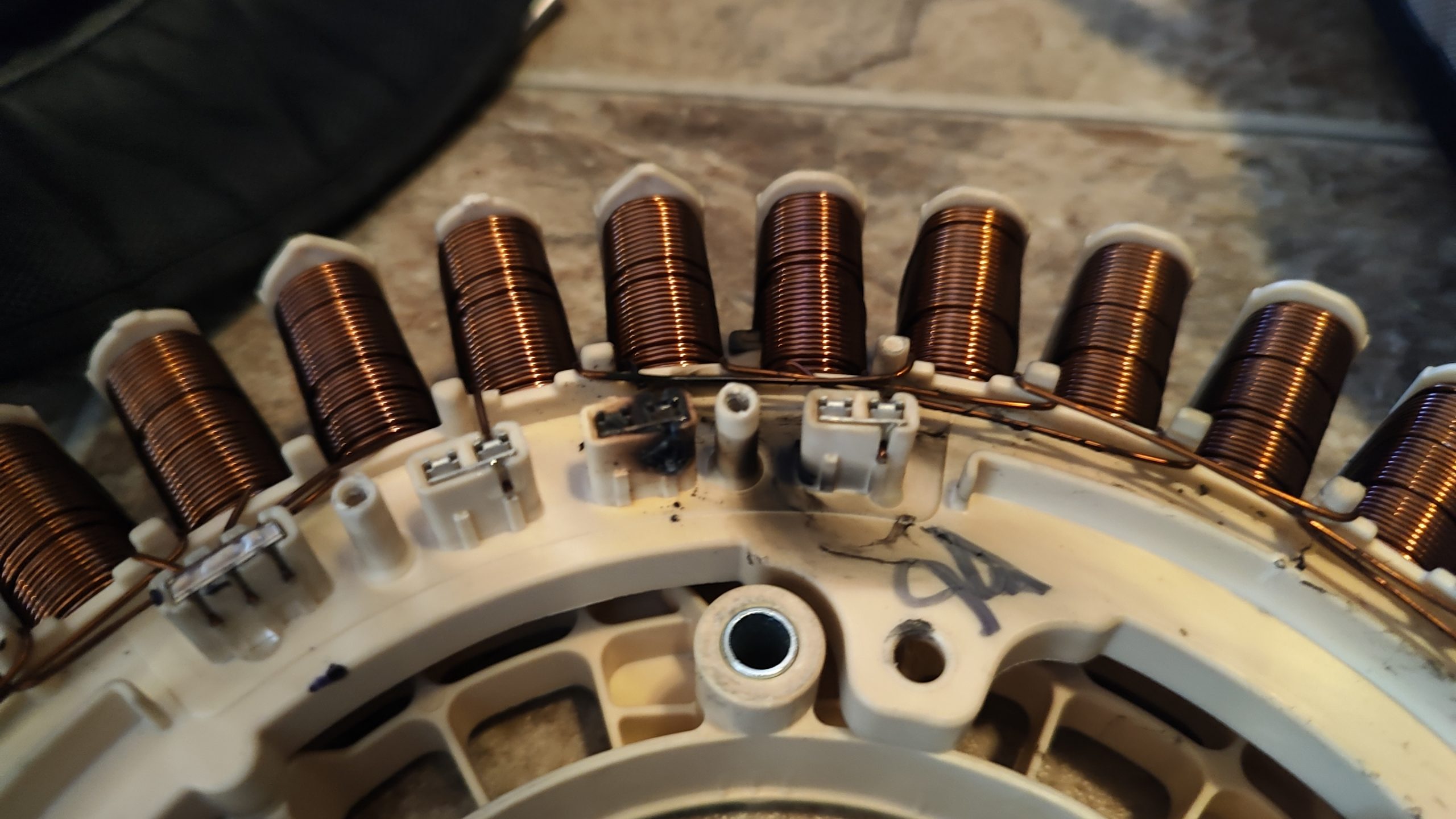

Once I got to the motor area, it became obvious that the problem was not some vague “electronics issue.” It was a specific physical failure in the assembly. The Hall sensor contacts were melted, blackened, showing obvious heat damage, and the stator winding connection points were burned off, meaning the circuit connection was broken there. This was no longer a story about a questionable reading or a sensor that “maybe works sometimes.” This was a real, visible physical failure. And that is what made the case unusual.
Hall sensors do fail on Samsung washers. That is not news. But to see burned and melted contacts in that area, plus mechanical destruction of one of them, is much less common. In my own experience, I do not remember seeing that even once before. So at this point there was no reason to talk about resetting the error, unplugging and reconnecting the harness, or trying to persuade the washer to keep working a little longer. The damage was real and serious.
Diagnosis
After inspecting the assembly, the picture became clear: stator — replace, Hall sensor — replace. The good news was somewhere else. The control circuit had survived. The main board was not damaged. The board did not burn up, and this repair did not turn into a much more expensive scenario. And that matters. Because once a failure like this reaches the control board too, the repair bill becomes a very different number. Here, the failure stayed on the motor side, and that kept the repair cost in a reasonable range.
What matters technically here
In this case, the washer filled with water but did not move into normal operation not because “something froze up,” but because the system was not getting proper feedback from the motor assembly. If the washer does not see a correct drum rotation signal, it cannot continue the cycle normally. From the machine’s point of view, either the motor is not operating correctly, or its position and speed are not being confirmed correctly. So the cycle stops, and the display shows a motor-related error. That is why everything fit together into one picture: water fills, the drum does not move into normal rotation, the washer goes into an error code, and the real fault is on the motor and feedback side.
What Samsung made convenient here
To give Samsung some credit, the repair path in this case was actually logical. The replacement path was direct and clear. Instead of chasing multiple questionable small parts one at a time, it was possible to take the correct route and replace the failed assembly properly. For cases like this, that is the best scenario: find the real failure, install the correct part, verify operation, close the job.
Estimate prepared on site
Once the failure was confirmed, the estimate was prepared right there on site.
Washer Motor Stator

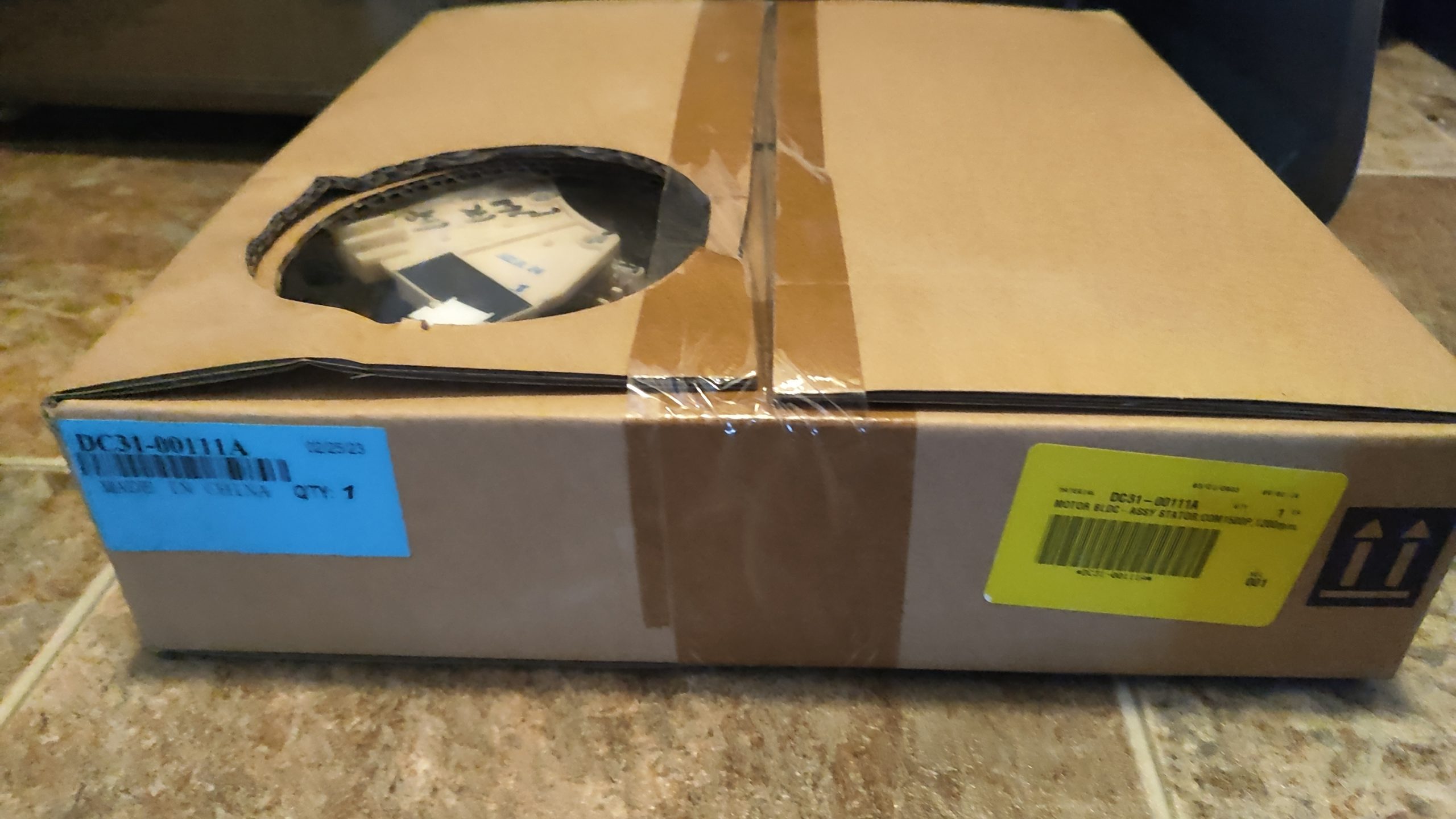

Part # DC31-00111B → replaced by DC31-00111A
Estimate:
Parts — $286.04
Labor — $220.00
Subtotal — $506.04
Discount — $50.00
New Subtotal — $456.04
Sales Tax — $39.68
Total — $495.72
Payment:
Deposit — $300.00 by check
Remaining balance — $195.72 by check
The customer approved the repair right away. And that is how a normal working repair should go: the cause is found, the cost is clear, and the decision is made on site.
The part was available locally
Another advantage in this repair was that the required part was available locally in Vancouver, WA. That meant we did not have to wait on some long shipment from who-knows-where. So the process went the right way: find the fault, confirm the diagnosis, approve the estimate, get the part, return the next day, install the new stator, and test the washer. For the customer, that is always better than a repair dragging out for an unknown amount of time.
Installing the new stator

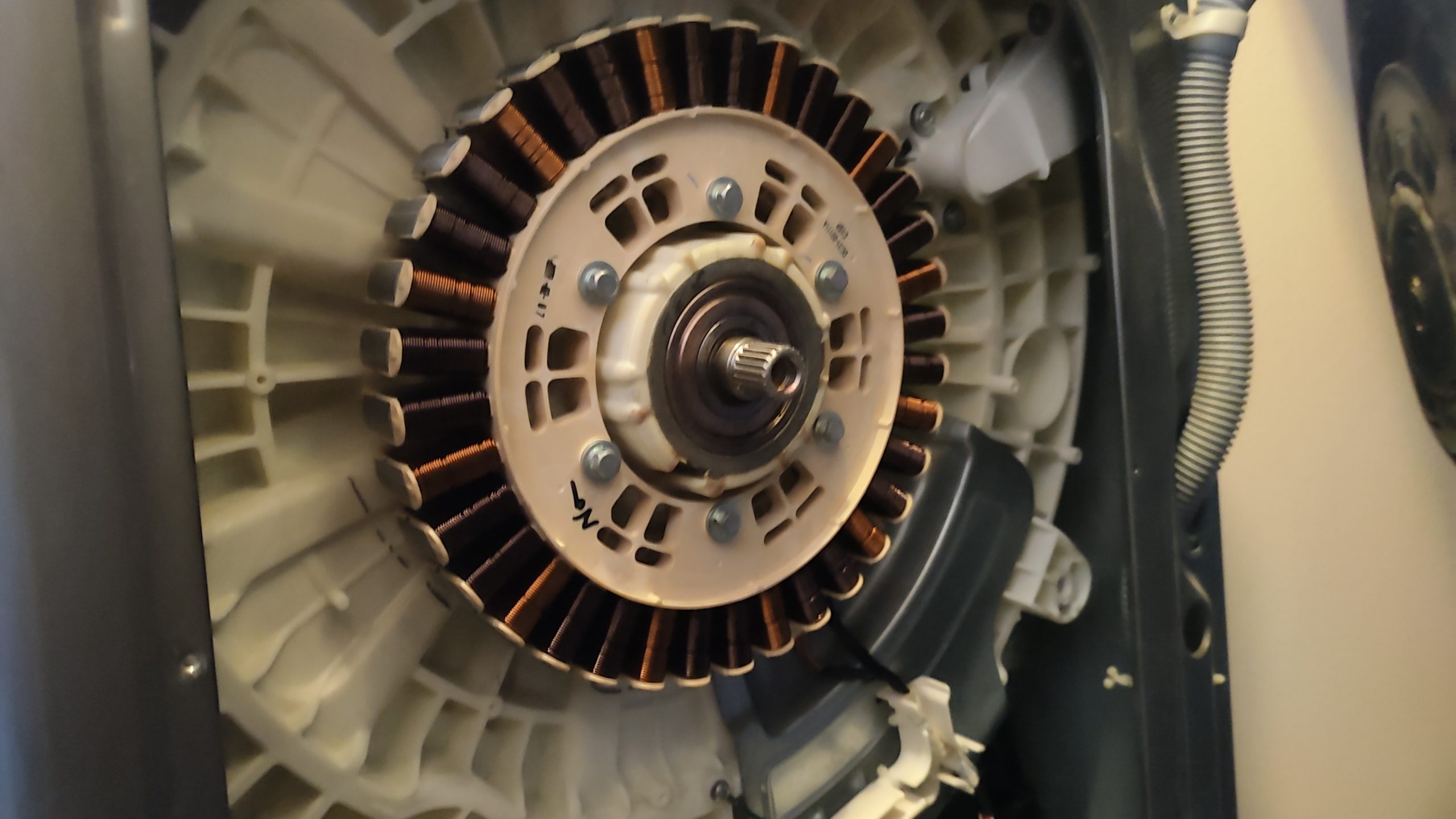

On the return visit, the damaged motor assembly was replaced with a new one. Everything was reconnected, and the washer was reassembled. After that, the most important thing was not just turning it on, but verifying whether the washer would now see the motor correctly, spin the drum properly, and pass testing without faults. And that is exactly where you see the difference between “we changed a part” and “we actually solved the problem.”
Final test

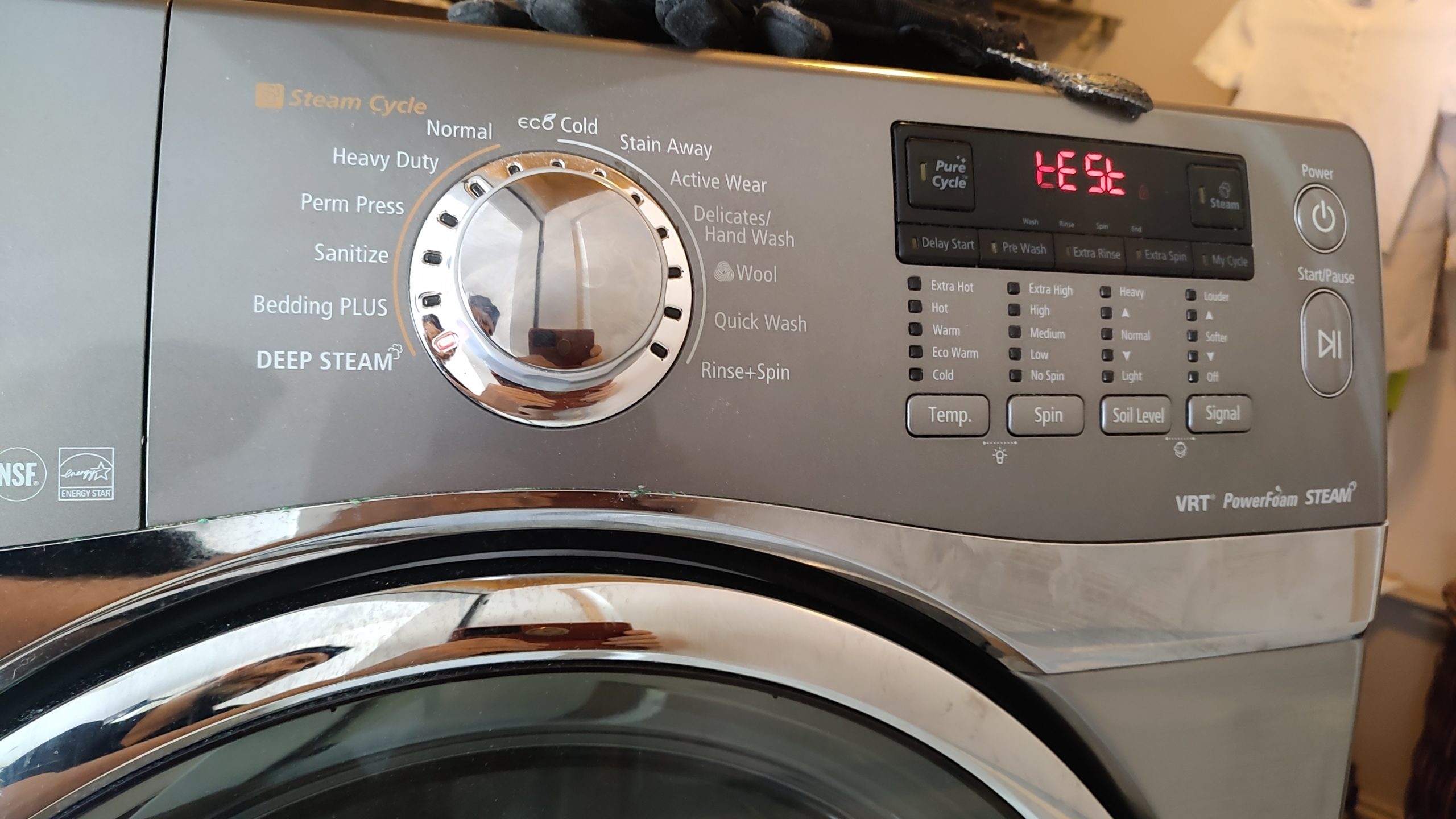

The main check was the spin test. That quickly shows whether normal motor operation has been restored and whether the washer is receiving the correct feedback signal again. The result was exactly what it should be after a proper repair: the motor spins, RPM is stable, the error code does not come back, and the washer returns to normal operation. So the problem was solved not “kind of,” but in reality. The machine stopped doing that thing where it would just fill with water and sit there. It went back to working the way it should.
Final result
The repair was completed. The customer paid the balance. Warranty was provided. The job closed out cleanly. And this is exactly the kind of case that shows why appliance repair depends on diagnosis, not blind faith in a code sheet. The washer was showing 3E1, while the service sheet referenced 3E2. The sheet inside the machine did not properly support the actual code. Standard test mode entry did not behave the way it should. But the washer still had to be diagnosed by real logic.
And once we reached the motor assembly, the cause became obvious: thermally damaged Hall sensor contacts in the stator area, with real overheating, melting, and contact failure. That is why the washer would fill with water but would not move into normal drum rotation.
What this case shows
There are several practical takeaways from this repair:
- not every code on the display is clearly explained by the service sheet;
- not every Samsung washer behaves exactly according to the “standard” script;
- if the washer fills with water but will not spin, that does not automatically mean the control board is bad;
- sometimes the real problem is in the motor and feedback circuit, and you only see it after proper disassembly and inspection;
- diagnostic logic matters more than a pretty error label.
That is exactly why proper washer repair service is not guessing and not replacing parts at random. It is about finding the actual cause and fixing that cause correctly.
More real repair cases and useful EasyFix pages
If you want to see more real repairs with photos, diagnosis, and final results, those cases are published on the EasyFix blog: EasyFix Blog.
And if you need service specifically for Samsung appliances or washers, here are the relevant service pages:
If you need a service call in Ridgefield, Vancouver, or nearby areas, you can also check:
Or just reach out here: Contact us.
FAQ
Is error code 3E1 always listed in the Samsung service manual?
No. In this case, the washer displayed 3E1, but the service sheet inside the machine listed 3E2 and did not provide a proper explanation for 3E1.
Can you replace only the Hall sensor?
Usually yes. But in this repair, the damage in the stator and contact area was severe enough that replacing the stator was the correct solution.
If the error is motor-related, does that mean the main board is bad?
No. In this case, the main board was not damaged. The failure was on the motor side, which kept the overall repair cost lower.
Is it worth repairing an older Samsung washer?
Usually yes, if the washer is still in decent overall condition and the needed parts are available. Age alone does not decide everything. The real factors are the condition of the machine and the cost of the actual failure.
Do you provide Samsung washer repair in Ridgefield and nearby areas?
Yes. EasyFix provides Samsung washer repair and general washer repair service in Ridgefield, Vancouver, and nearby areas.
