Hey there! Let’s talk about refrigerator sealed system problems in normal human language. The sealed system is the part that actually makes your fridge cold — not just a fancy food cabinet with a light inside.
The sealed system includes:
- Compressor: the heart of the system. It keeps the refrigerant moving in a loop.
- Dryer Filter: cleans the refrigerant of moisture, debris, and other unwanted gunk.
- Evaporator: where the refrigerant evaporates and absorbs heat from inside the refrigerator.
- Condenser: cools down the refrigerant after the compressor does its work.
- Tubing: the pathways where refrigerant flows through the system.
- Three-Way Valve (Tri-Valve): directs refrigerant where it needs to go on some models.
1. Diagnosing the Sealed System
Signs of Trouble
If you’ve noticed your fridge is warm inside, but the compressor is humming away like a freight train, something is definitely off. The motor may be running, but the cooling system is not doing its job — and that is when proper diagnosis matters.
Possible issues:
- Worn-Out Compressor: maybe it is ready to retire.
- Refrigerant Leak: without enough refrigerant, your fridge cannot cool — kind of like a car trying to drive with no fuel.
- Clogged Dryer Filter: if it is blocked, refrigerant cannot circulate properly.
- Blockage in the Tubing: this one is harder to confirm without special tools and pressure testing.

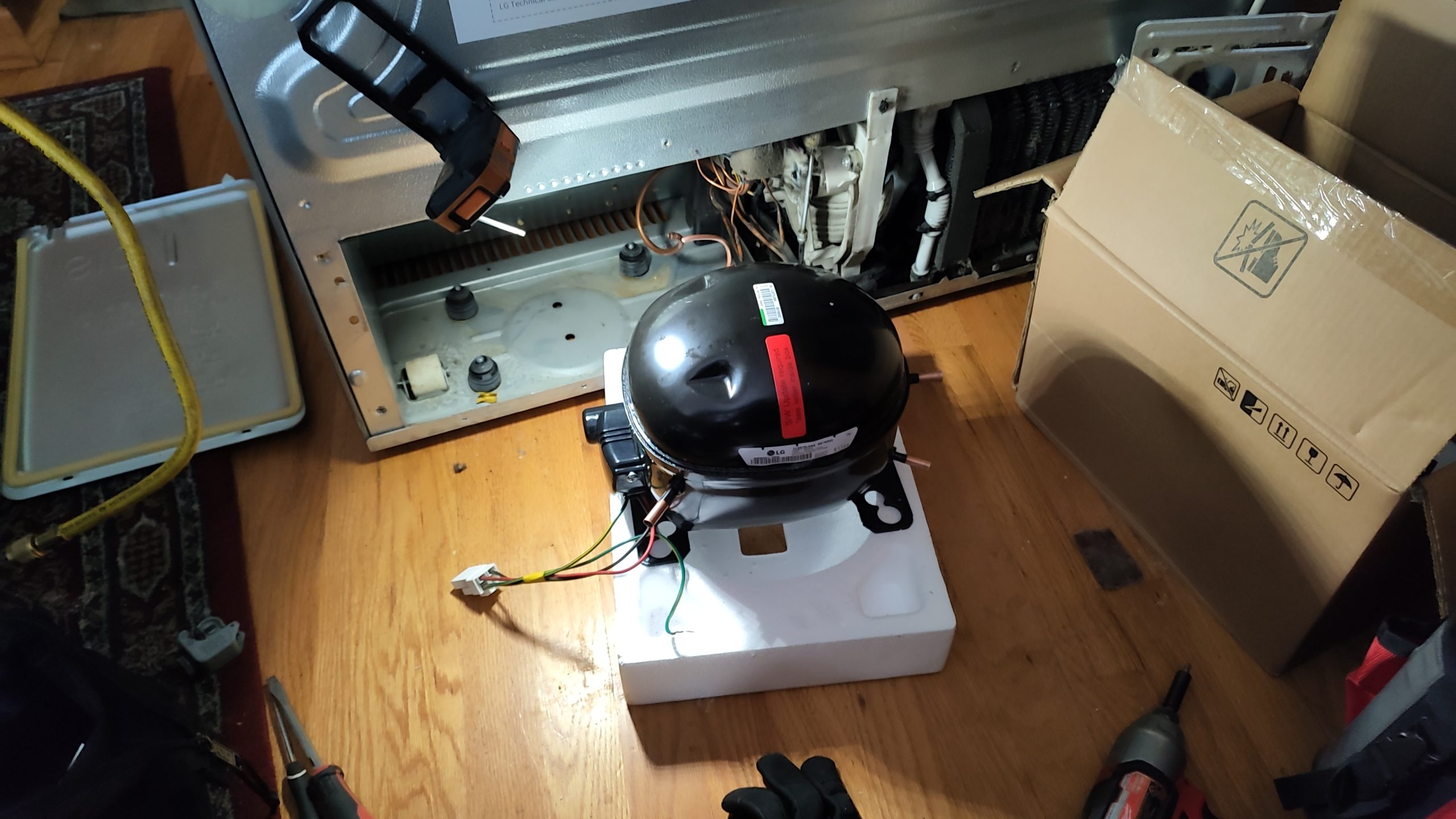

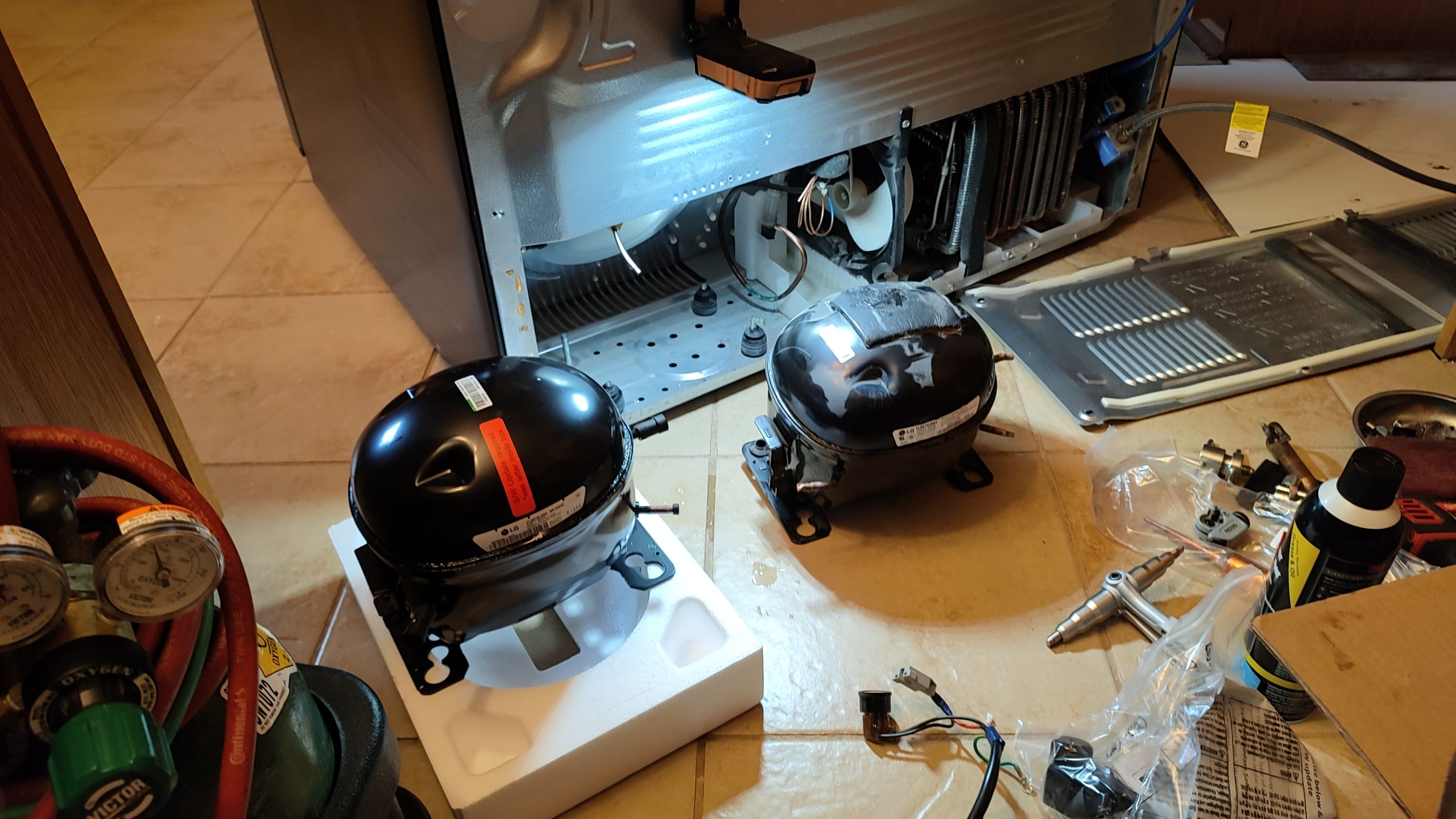

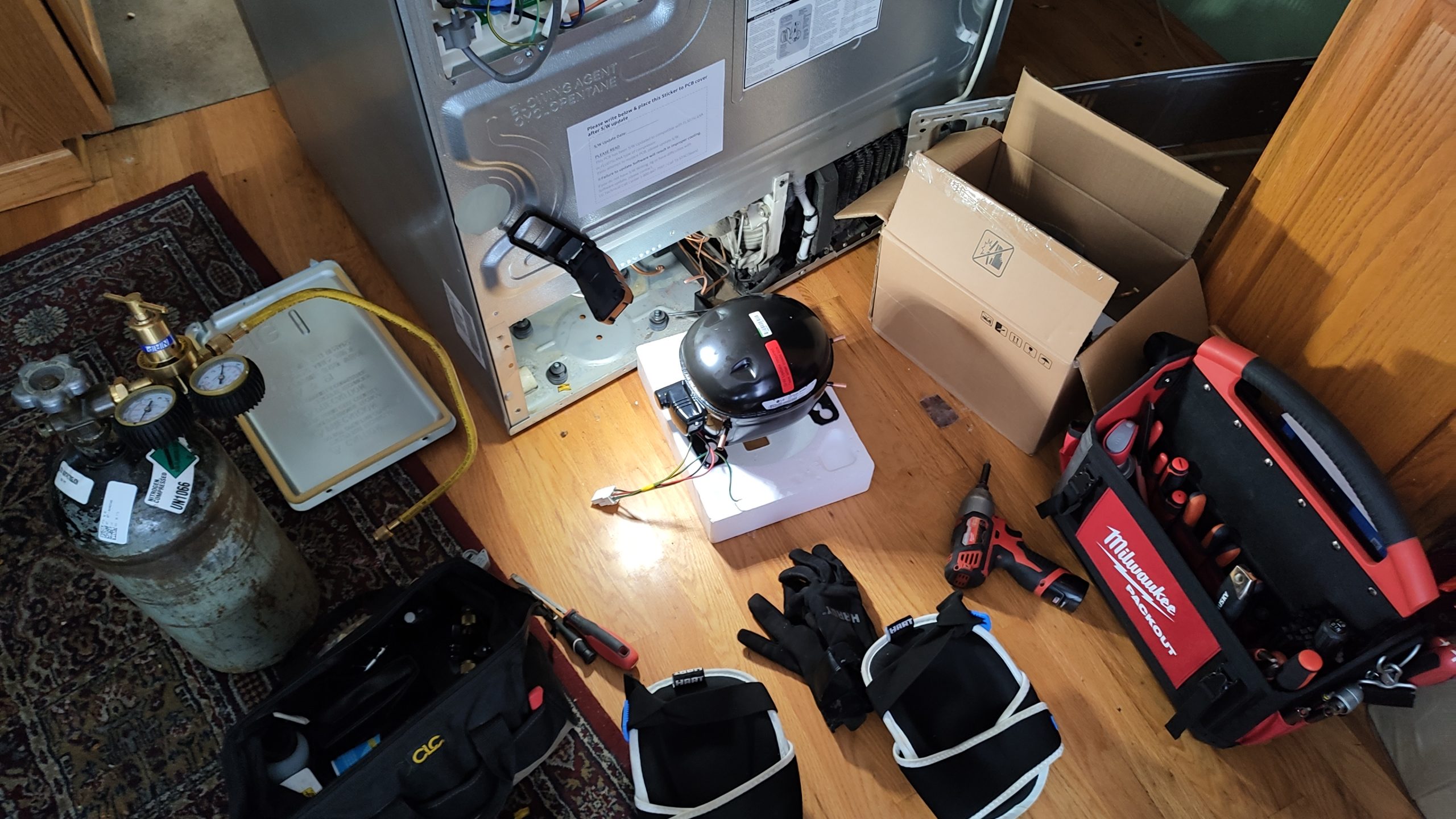

LG Portland and Kenmore Vancouver — no-cool diagnosis, system testing, and leak check.
How to Figure It Out
To really understand what is happening inside the sealed system, we have to connect to the system with proper service valves and read the pressures with gauges. This is the point where guessing stops and real diagnosis begins.
And no, this is not the “tap the fridge twice and hope for the best” part of the job. Pressure readings can tell us whether the compressor is pumping correctly, whether the system is low on refrigerant, or whether there may be a restriction somewhere in the tubing or filter drier.
If there is a suspected refrigerant leak, the next step is proper leak evaluation and pressure testing. This is not something we recommend as a casual DIY experiment. Sealed system work needs the right tools, the right procedure, and a calm technician who does not guess with the customer’s money.

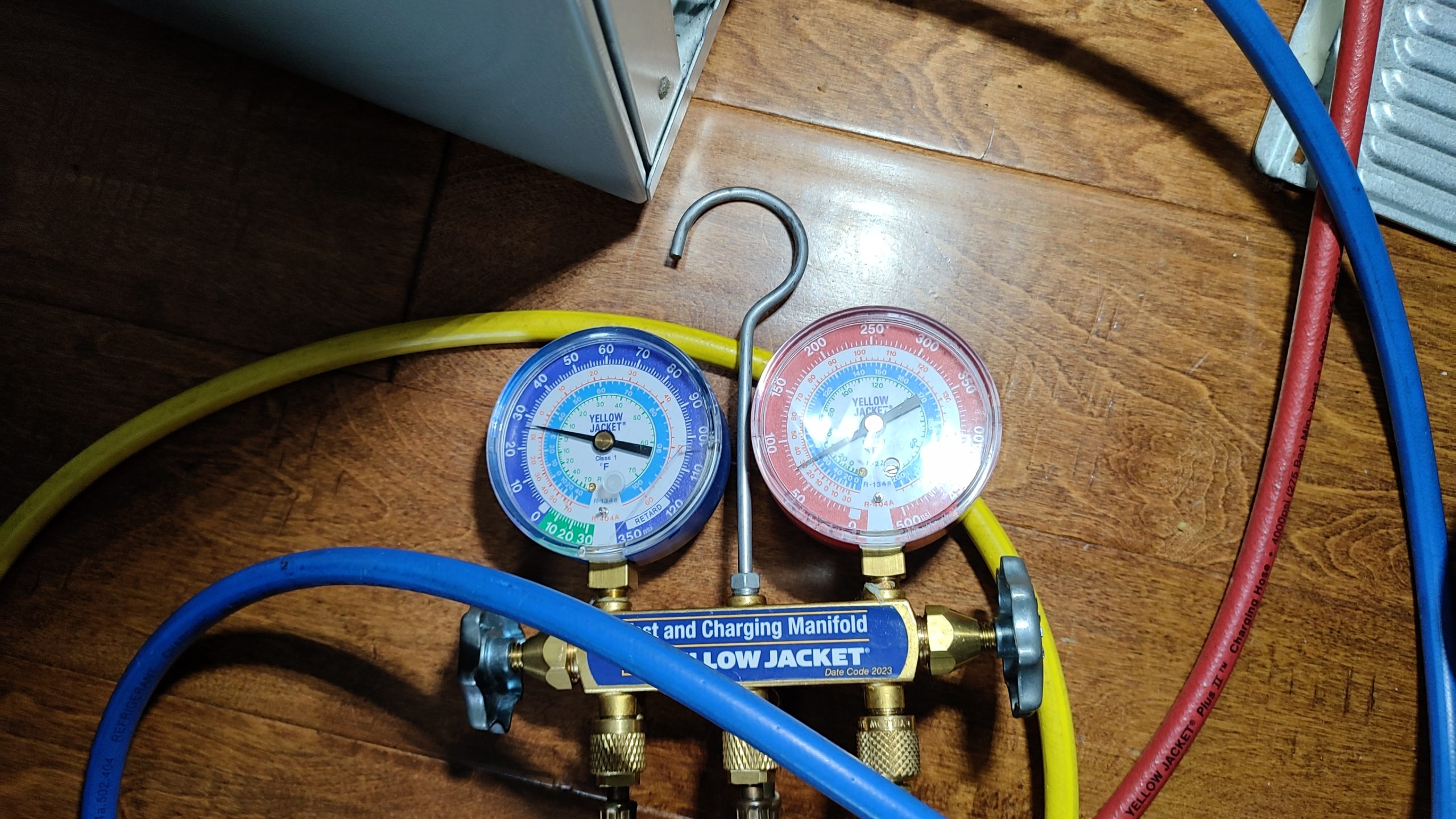

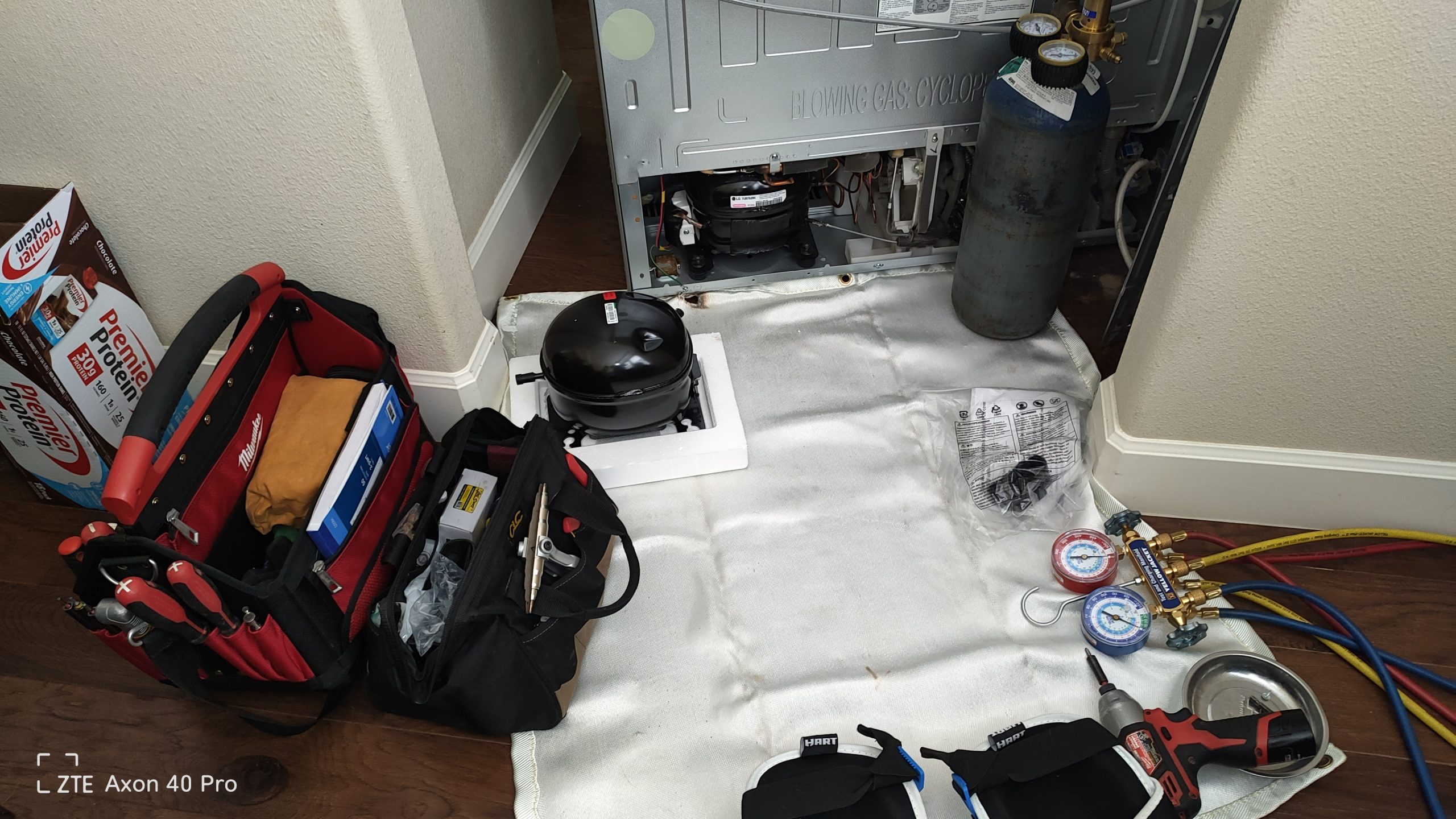

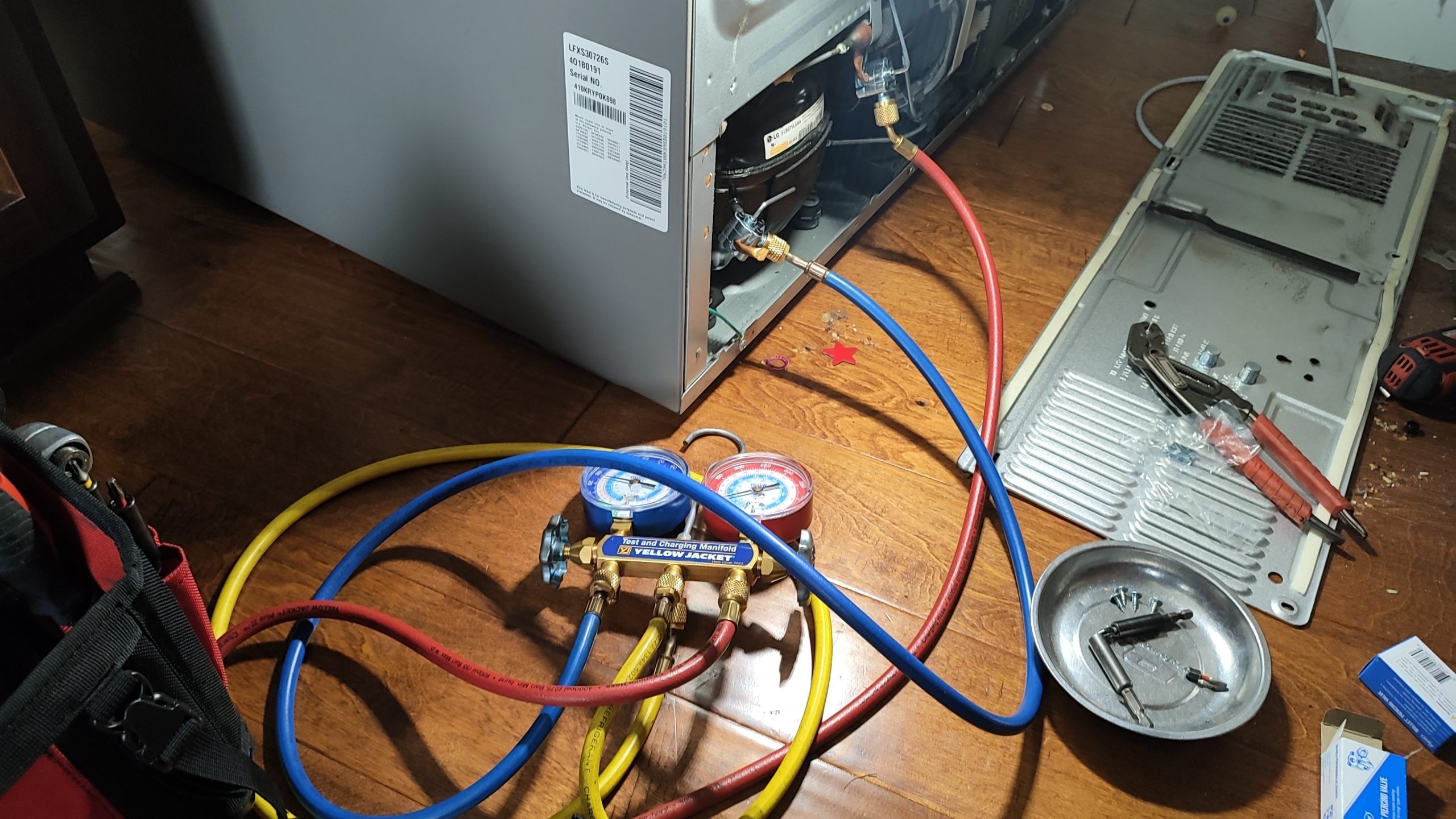

LG Portland — sealed system connection, pressure test, and service setup.
2. Repairing the Sealed System
Once the problem is confirmed, the repair has to be done carefully. Sealed system repair is not just “replace a part and hope.” The process matters just as much as the part.
Repair Steps:
- Replace Failed Parts: if the diagnosis confirms a failed compressor, evaporator, filter drier, or another sealed-system part, we replace what actually needs to be replaced — not whatever sounds expensive.
- Flush the System: when the system is contaminated, it may need to be flushed to remove moisture, oil residue, and debris. This is not the glamorous part of the job, but neither is cleaning the garage — still has to be done right.
- Replace the Dryer Filter: no getting around it — we install a new one.
- Check the Tubing: make sure there are no blockages and everything flows smoothly.
- Pressure Test After Repair: check to make sure there are no leaks after the work is done.

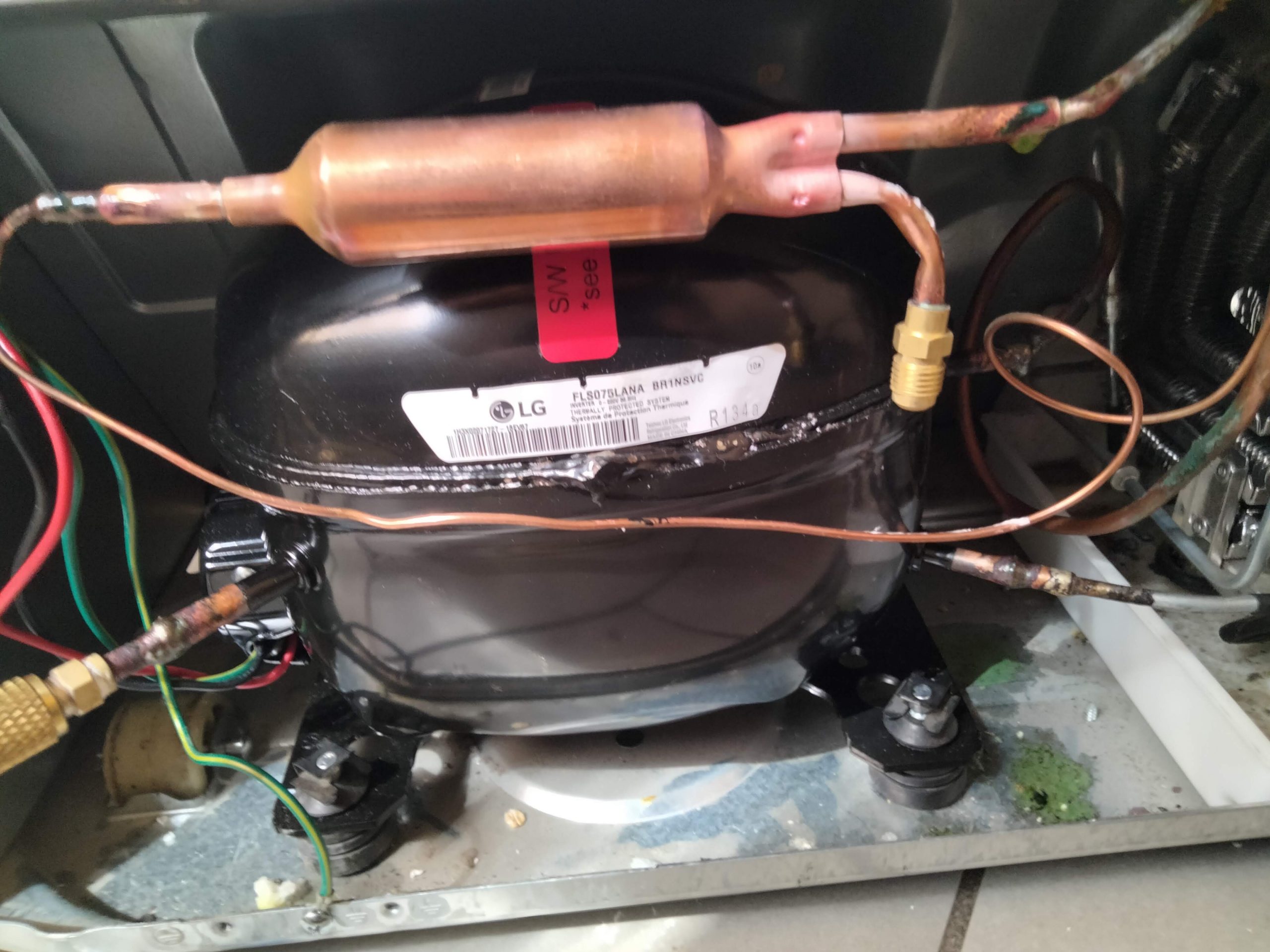

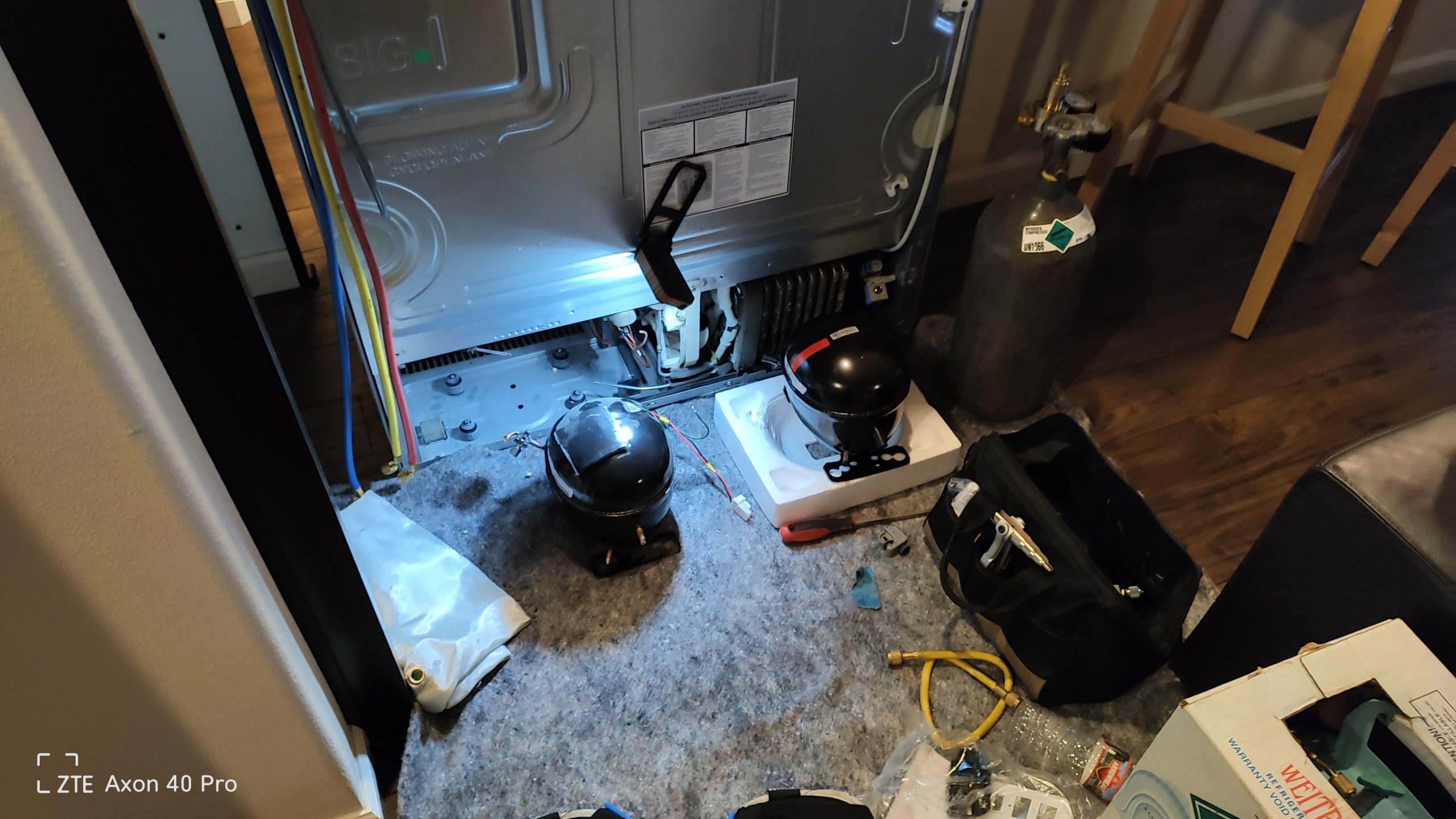

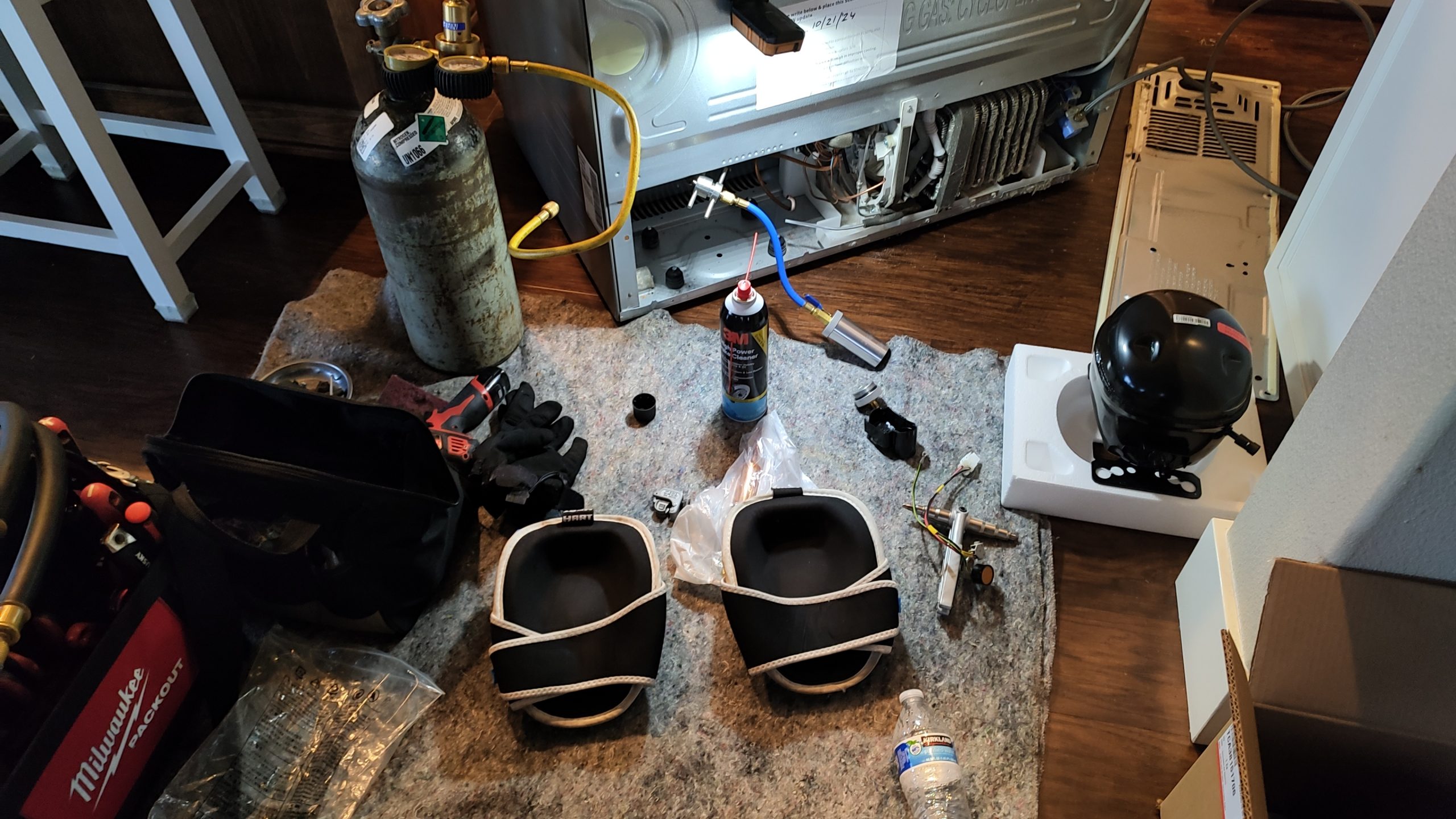

Vancouver WA — old compressor removed, replacement in progress, and new compressor installed.
When the repair is done properly, you give the refrigerator a real second chance. Your wallet stays happier, and your appliance keeps chugging along.
3. Recharging with Refrigerant
The final step is to recharge the system with refrigerant, but only after the system has been repaired, checked, and prepared correctly.
- Evacuate the System: first, we remove air and moisture with a vacuum pump. Moisture inside a sealed system is not a tiny detail — it can ruin the repair faster than a bad decision on a Monday morning.
- Recharge with Refrigerant: we add the exact factory refrigerant charge — no more, no less. More refrigerant does not mean more cooling. This is not coffee.
- Check Operation: after recharging, we run the refrigerator and monitor performance. In many cases, it should start cooling within a few hours, but full temperature stabilization can take up to 24 hours. Ice production may take longer, especially on some models.
Hubbard OR — R134a recharge during sealed system repair.
4. Why Repairing Can Make Sense
You might be thinking, “Wouldn’t it be easier to just buy a new fridge?” Sometimes yes. But not always. Let’s weigh it out.
Save Some Cash
Repairing can cost much less than buying a new appliance. The money you save can go toward something more fun — like a barbecue with friends.
Keep What You Know
You know your refrigerator. You know how it fits, how it works, and whether it has been reliable until now. If the rest of the appliance is in good condition, repair may make sense.
Just as Effective
After a proper sealed system repair, a refrigerator can return to normal cooling performance. That is the whole point: not magic, not hope — just a repair done the right way.
Eco-Friendly Choice
The less we toss out, the less we pollute our planet. Keeping a repairable appliance in service makes the world a bit cleaner. Feels good, doesn’t it?
5. Tips After the Repair
- Load Up Your Fridge: put some food back in or at least a few bottles of water. It will run more efficiently that way. An empty fridge is like an empty house — not very cozy.
- Keep an Eye on the Temperature: if you want, place a thermometer inside and make sure the temperature stabilizes properly.
- Take Care of Your Appliance: every now and then, check the door seals and clean dust from the condenser coils. It can help your refrigerator last longer.
Conclusion
Sealed system problems are serious, but they are not always the end of the road. Don’t rush out to buy a new refrigerator before you know what actually failed. In the right situation, repair can save money, reduce stress, and keep a good appliance working.
If the problem involves refrigerant, pressure testing, compressor replacement, or sealed system repair, it is better to call a professional. This is not the kind of repair where guessing is your friend. Your refrigerator deserves better than a lucky guess and a YouTube comment section.
Now, Jokes Aside — Here’s How EasyFix Handles Compressor Replacement
We can explain sealed system problems in simple words, but compressor replacement itself is serious work.
If you are dealing with a refrigerator that is not cooling and you suspect the compressor or sealed system may be involved, you can also visit our main refrigerator compressor replacement service page. That page explains how we handle compressor diagnosis, repair decisions, and sealed-system work for customers across Clark & Cowlitz Counties and the Portland Metro Area.
At EasyFix, we do it step by step:
- Confirm the diagnosis.
- Make sure the refrigerator is worth repairing.
- Install the correct compressor.
- Replace the filter drier.
- Check for leaks and restrictions.
- Pull a proper vacuum.
- Add the exact factory refrigerant charge.
- Test the refrigerator after repair.
Questions & Answers About Refrigerator Sealed System Repair
What is the sealed system in a refrigerator?
The sealed system is the part of the refrigerator that actually provides cooling. It includes the compressor, condenser, evaporator, filter drier, tubing, refrigerant, and sometimes a three-way valve.
How can I tell if my refrigerator has a sealed system problem?
The most important warning sign is a refrigerator that is not cooling while the compressor is running. Other signs can include frost forming only on a small part of the evaporator, the refrigerator running almost continuously, or cooling that gets weaker over time.
These symptoms do not automatically prove a sealed system failure. Fans, controls, sensors, airflow problems, and start components can also cause cooling issues. But when these signs show up, sealed system diagnosis becomes a serious possibility.
Is it enough to simply add refrigerant to fix the problem?
If the compressor is faulty, adding refrigerant will not help. If the refrigerator is low on refrigerant, that is a different issue and usually points to refrigerant loss or a leak. It is not the same problem as a failed compressor.
Is compressor replacement always worth it?
No, not always. First of all, it depends on what the customer wants to do. From a technical and practical point of view, it depends on the age of the refrigerator, the brand, the overall condition of the unit, the value of the refrigerator, and the cost of the compressor replacement.
How long does it take for a refrigerator to start cooling after sealed system repair?
In many cases, the refrigerator starts cooling within a few hours. However, full temperature stabilization can take up to 24 hours. Ice production may take longer, sometimes up to 72 hours on some Samsung models.
Can sealed system repair fully restore normal refrigerator operation?
Yes, a proper sealed system repair can restore normal cooling and help avoid replacing the entire appliance when the refrigerator is still worth repairing.
Why does sealed system repair cost more than a regular refrigerator repair?
Because this is not just replacing one part. In this type of repair, the repair process itself is just as important as the quality of the parts used. It may include diagnosis, pressure testing, leak evaluation, filter drier replacement, evacuation, refrigerant recharge, and final performance testing.
